Swaged metric standpipe straight fittings

Bite type tube seal:

 Bite type fitting consists of three parts: body, cutting ring and nut, when tightening nut,                 Cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring,  this is how sealing is achived and results in internal ridge inside the tube.

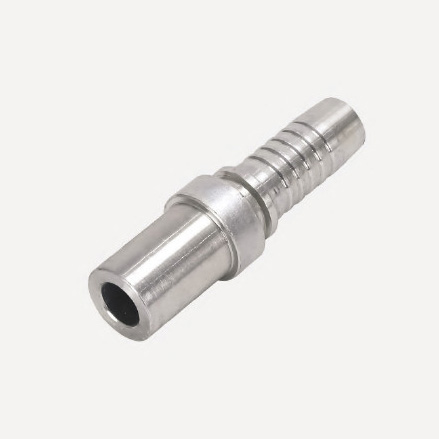

50011 METRIC STANDPIPE STRAIGHT DIN 2353

Metric standard thread;

Male connection port;

Bite type Seat Seal;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 50011 for braid;50012 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.TUBE O.DHOSE BOREDIMENSIONS
DNDASHAC
50011-06-03650328.522
50011-06-0466042922
50011-10-05108053123
50011-10-061010063223
50011-12-0612100633.523
50011-12-081212083323
50011-15-0615100635.525
50011-15-0815120835.525
50011-18-0818120836.526
50011-18-101816104126
50011-22-102216104428
50011-22-122220124428
50011-22-162225164628
50011-28-162825164730
50011-35-203532205636
50011-42-244240246240
PART NO.TUBE O.DHOSE BOREDIMENSIONS
DNDASHAC
50011-08-0486043124
50011-08-0588053324
50011-08-06810063324
50011-10-04106043526
50011-12-041260434.526
50011-12-051280535.526
50011-14-0614100639.529
50011-14-081412084029
50011-14-1214201245.529
50011-16-081612084130
50011-16-1016161045.530
50011-20-1020161052.536
50011-20-1220201252.536
50011-25-162520165640
50011-25-162525165740
50011-30-163025166344
50011-30-203032206444
50011-38-163825166950
50011-38-203832207050

50041 45° METRIC STANDPIPE STRAIGHT

Metric standard thread;

Female connection port;

Bite type Seat Seal;

45° body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 50041 for braid; 50042 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.TUBE O.DHOSE BOREDIMENSIONS
DNDASHACS1
50041-06-036503462225.7
50041-06-04660448.72226.6
50041-08-05880552.22429.2
50041-08-068100653.82429.5
50041-10-051080551.52328.5
50041-10-0610100653.12328.8
50041-12-0612100653.12328.8
50041-15-0615100654.52530.3
50041-15-0815120866.72531.8
50041-18-0818120867.42632.8
50041-18-1018161078.62633.8
50041-22-1022161079.52837.2
50041-22-1222201286.22838.8
50041-28-1628251696.73042.4
50041-35-20353220111.63649.3
PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACS1
50041-08-04860450.12428
50041-10-041060451.52629.4
50041-12-041260451.52629.4
50041-12-051280548.32624.4
50041-14-0614100657.32933.1
50041-14-0814120869.62924.6
50041-16-0816120863.23028.2
50041-16-1016161080.93036.6
50041-20-1020161085.73640.9
50041-20-1220201291.93644.5
50041-25-1225201294.74047.3
50041-25-16252516102.34048.1
50041-30-16302516105.84454.4
50041-30-20303220117.24454.9
50041-38-163825161105058.6
50041-38-20383220121.45059.1

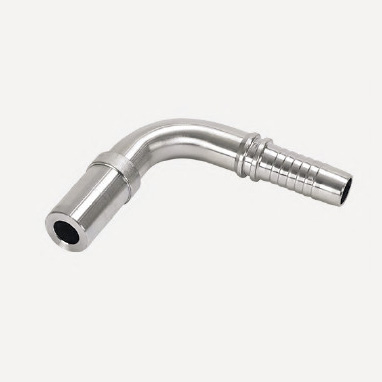

50091 90° METRIC STANDPIPE STRAIGHT DIN 2353

Metric standard thread;

Female connection port;

Bite type  Seat Seal;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hoseBite

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 50091 for braid; 50092 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.TUBE O.DHOSE BOREDIMENSIONS
DNDASHACS1
50091-06-03650326.52242.5
50091-06-046604302245.5
50091-08-058805332450.5
50091-08-068100635.32452.8
50091-10-0510805332349.5
50091-10-0610100635.32351.8
50091-12-0612100635.32353.8
50091-12-08121208412359
50091-15-0615100635.32553.8
50091-15-08151208412559
50091-18-08181208412660
50091-18-1018161056.52664.5
50091-22-1022161056.52866.5
50091-22-1222201265.52876
50091-22-1622251676.72881.5
50091-28-1628251676.73083.5
50091-35-203532209336100.5
PART NO.TUBE O.DHOSE BOREDIMENSIONS
DNDASHACH
50091-08-048604302447.5
50091-10-0410604302649.5
50091-12-0412604302649.5
50091-12-0512805332652.5
50091-14-0614100635.32957.8
50091-14-08141208412963
50091-16-08161208413064
50091-16-1016161056.53068.5
50091-20-1020161056.53674.5
50091-20-1220201265.53685
50091-25-1225201265.54089
50091-25-1625251676.74093.5
50091-30-1630251676.74093.5
50091-30-2030322091.544108.5
50091-38-1638251676.750115.5
50091-38-2038322091.550114.5
