SWAGED JIS Flange FITTINGS
Swaged JIS flange fittings
88111 JIS FLANGE
JIS flange;
Two halves flange with an O Ring Seal ;
Straight body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 88111 for braid; 88112 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | L | ||
| 88111-10-08 | 5/8" | 12 | 08 | 45 | 34.2 | 27.8 | 6.7 |
| 88111-10-10 | 5/8" | 16 | 10 | 45.5 | 34.2 | 27.8 | 6.7 |
| 88111-10-12 | 5/8" | 20 | 12 | 46 | 34.2 | 27.8 | 6.7 |
88141 45° JIS FLANGE
JIS flange;
Two halves flange with an O Ring Seal ;
45° body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 88141 for braid; 88142 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | L | ||
| 88141-10-08 | 5/8" | 12 | 08 | 58.9 | 34.2 | 24 | 6.7 |
| 88141-10-10 | 5/8" | 16 | 10 | 69.6 | 34.2 | 25.3 | 6.7 |
| 88141-10-12 | 5/8" | 20 | 12 | 76.3 | 34.2 | 28.9 | 6.7 |

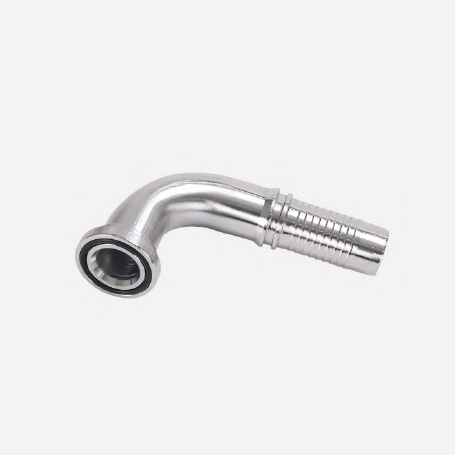

88191 90° JIS FLANGE
JIS flange;
Two halves flange with an O Ring Seal ;
90° body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 88191 for braid; 88192 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | H | L | ||
| 88191-10-08 | 5/8" | 12 | 08 | 41 | 34.2 | 27.8 | 48 | 6.7 |
| 88191-10-10 | 5/8" | 16 | 10 | 56 | 34.2 | 27.8 | 52.5 | 6.7 |
| 88191-10-12 | 5/8" | 20 | 12 | 66.2 | 34.2 | 27.8 | 62 | 6.7 |
