SWAGED BSP FLAT SEAL FINTTNGS
Swaged BSP Flat Seal fittings
12211 BSP MALE O-RING SEAL
BSPP standard thread;
Male connection port;
O-Ring Flat Seat Seal;
Straight body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 12211 for braid;12212 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | |||
| 12211-04-04 | G1/4"x19 | 6 | 04 | O111 | 23.5 | 11 | 19 |
| 12211-04-06 | G1/4"x19 | 10 | 06 | O111 | 23.5 | 11 | 19 |
| 12211-06-06 | G3/8"x19 | 10 | 06 | O113 | 26.5 | 12 | 22 |
| 12211-08-04 | G1/2"x14 | 6 | 04 | O115 | 33.5 | 14 | 27 |
| 12211-08-06 | G1/2"x14 | 10 | 06 | O115 | 33.5 | 14 | 27 |
| 12211-08-08 | G1/2"x14 | 12 | 08 | O115 | 34 | 14 | 27 |
| 12211-10-10 | G5/8"x1 | 16 | 10 | O910 | 36 | 15.5 | 30 |
| 12211-12-10 | G3/4"x14 | 16 | 10 | O119 | 33.5 | 15.5 | 32 |
| 12211-12-12 | G3/4"x14 | 20 | 12 | O119 | 38 | 15.5 | 32 |
| 12211-12-16 | G3/4"x14 | 25 | 16 | O119 | 36 | 15.5 | 32 |
| 12211-16-16 | G1"x11 | 25 | 16 | O217 | 44.5 | 18.5 | 41 |
| 12211-20-10 | G1.1/4"x11 | 32 | 20 | O222 | 46 | 20 | 50 |
22211 BSP FEMALE FLAT SEAT
BSPP standard thread;
Female connection port;
O-Ring Flat Surface Seat Seal;
Straight body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 22211 for braid; 22212 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | ||
| 22211-04-04 | G1/4"x19 | 6 | 04 | 15.5 | 8 | 19 |
| 22211-04-06 | G1/4"x19 | 10 | 06 | 15.5 | 8 | 19 |
| 22211-06-04 | G3/8"x19 | 6 | 04 | 17 | 9 | 22 |
| 22211-06-05 | G3/8"x19 | 8 | 05 | 17 | 9 | 22 |
| 22211-06-06 | G3/8"x19 | 10 | 06 | 16.5 | 9 | 22 |
| 22211-06-08 | G3/8"x19 | 12 | 08 | 17.5 | 9 | 22 |
| 22211-08-06T | G1/2"x14 | 10 | 06 | 18 | 10.5 | 27 |
| 22211-08-08 | G1/2"x14 | 12 | 08 | 18.5 | 10.5 | 27 |
| 22211-10-08 | G5/8"x14 | 12 | 08 | 20 | 12 | 30 |
| 22211-10-10 | G5/8"x14 | 16 | 10 | 21 | 12 | 30 |
| 22211-12-08T | G3/4"x14 | 12 | 08 | 20.5 | 13.5 | 32 |
| 22211-12-10 | G3/4"x14 | 16 | 10 | 21.5 | 13.5 | 32 |
| 22211-12-12 | G3/4"x14 | 20 | 12 | 21.5 | 13.5 | 32 |
| 22211-16-12T | G1"x11 | 20 | 12 | 21.5 | 15.5 | 41 |
| 22211-16-16 | G1"x11 | 25 | 16 | 23 | 15.5 | 41 |
| 22211-20-10W | G1.1/4"x11 | 32 | 10 | 26 | 15.5 | 50 |
| 22211-24-24W | G1.1/2"x11 | 40 | 24 | 27.5 | 17.5 | 55 |
| 22211-32-32W | G2"x11 | 50 | 32 | 30.5 | 23 | 70 |

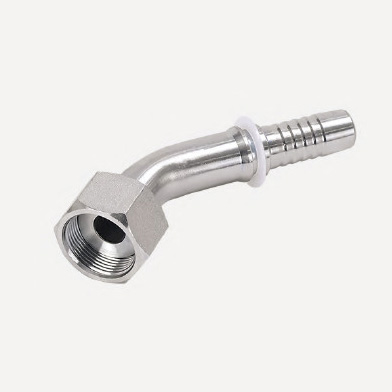

22241 45° BSP FEMALE FLAT SEAT
BSPP standard thread;
Female connection port;
O-Ring Flat Surface Seat Seal;
45° body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 22241 for braid; 22242 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 22241-04-04 | G1/4"x19 | 6 | 04 | 40.9 | 8 | 18.8 | 19 |
| 22241-06-06 | G3/8"x19 | 10 | 06 | 45.3 | 9 | 21 | 22 |
| 22241-08-08 | G1/2"x14 | 12 | 08 | 58.9 | 10.5 | 24 | 27 |
| 22241-12-12 | G3/4"x14 | 20 | 12 | 76.8 | 13.5 | 30 | 32 |
| 22241-16-16 | G1"x11 | 25 | 16 | 82.7 | 15.5 | 31.5 | 41 |
| 22241-20-10W | G1.1/4"x11 | 32 | 20 | 97.3 | 15.5 | 36.6 | 50 |

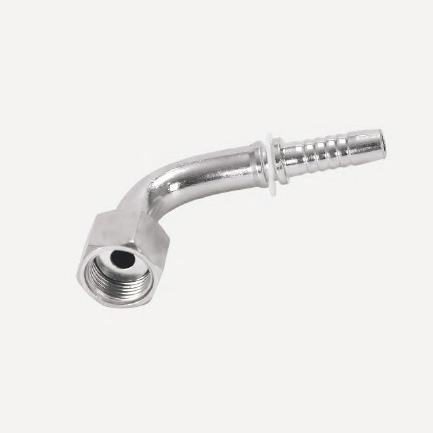

22291 90° BSP FEMALE FLAT SEAT
BSPP standard thread;
Female connection port;
O-Ring Flat Surface Seat Seal;
90° body elbow;
Zinc-plated carbon steel; stainless steel available;
Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.
Note:
The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 22291 for braid; 22292 for spiral;
Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 22291-04-04 | G1/4"x19 | 6 | 04 | 30 | 8 | 34.5 | 19 |
| 22291-06-06 | G3/8"x19 | 10 | 06 | 35.3 | 9 | 41.3 | 22 |
| 22291-08-08 | G1/2"x14 | 12 | 08 | 41 | 10.5 | 48 | 27 |
| 22291-12-12 | G3/4"x14 | 20 | 12 | 65.5 | 13.5 | 63.5 | 32 |
| 22291-16-16 | G1"x11 | 25 | 16 | 76.7 | 15.5 | 70 | 41 |
| 22291-20-20W | G1.1/4"x11 | 32 | 20 | 91.5 | 15.5 | 82.5 | 50 |
| 22291-24-24W | G1.1/2"x11 | 40 | 24 | 109.4 | 17.5 | 98.5 | 55 |
