Banjo fittings

Banjo fittings are designed to connect hydraulic tube with the female hole on the machine surface; when they are used, we insert the long swaged tail into the tube in conjunction with crimping ferrule, and we tighten the round end on the hydraulic female port with hollow bolt; some washer must be attached to ensure the seal. so that the fluid can flow smoothly through the banjo fitting with certain operating pressure tolerance.

Sinopulse group supplies banjo fittings with the materials such as carbon steel, stainless steel, or brass.

Banjo fittings are available in various types of threads such as Metric, BSPP, BSPT, NPT, UNF etc, but the most popular is the former two type. we list their technical specification below, feel free to contact our sales staff when it comes to those banjo fittings out of range.

70011 METRIC BANJO

Banjo fitting;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

show more...

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 70011 for braid; 70012 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHAdDH
70011-10-03M10X150314.510.11710
70011-10-04M10X16041710.11710
70011-12-04M12X1.560420.512.12012
70011-12-05M12X1.580520.512.12012
70011-12-06M12X1.5100620.512.12012
70011-14-04M14X1.56041914.12414
70011-14-05M14X1.58051914.12414
70011-14-06M14X1.510062114.12414
70011-16-04M16X1.560420.516.12816
70011-16-05M16X1.580520.516.12816
70011-16-06M16X1.5100620.516.12816
70011-18-04M18X1.56042318.13220
70011-18-05M18X1.58052418.13220
70011-18-06M18X1.510062418.13220
70011-18-08M18X1.5120824.518.13220
70011-22-06M22X1.5100628.122.13925
70011-22-08M18X1.5120828.522.13925
70011-22-10M18X1.5161027.522.13925
70011-26-12M26X1.5201230.526.14630
70011-30-16M30X1.525163730.15436
70011-30-20M30X1.532204130.15436

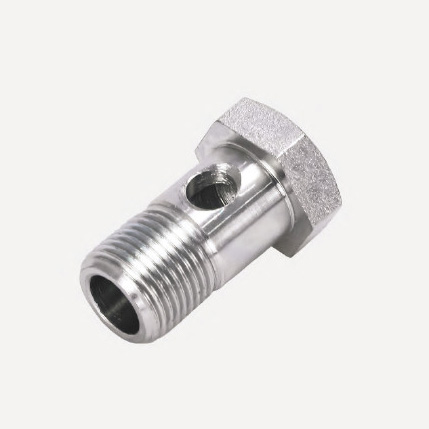

700M Bolt

Banjo fitting Bolt;

Zinc-plated carbon steel; stainless steel available;

show more...
banjo fittings bolt
PART NO.THREAD EDIMENSIONS
ABCS1
700M-10M10X1195.5614
700M-12M12X1.5247617
700M-14M14X1.5269619
700M-16M16X1.52811622
700M-18M18X1.53213624
700M-22M22X1.53916727
700M-26M26X1.54520732
700M-30M30X1.55124736

72011 BSP BANJO

Banjo fitting;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

show more...
swaged bsp banjo diagram

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 72011 for braid; 72012 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHAdDH
72011-02-03G1/8"X28503189.92416
72011-02-04G1/8"X2860418.59.92416
72011-04-03G1/4"X195031913.32415
72011-04-04G1/4"X1960419.513.32415
72011-04-05G1/4"X1980519.513.32415
72011-04-06G1/4"X19100619.513.32415
72011-06-04G3/8"X196042216.72920
72011-06-05G3/8"X198052216.72920
72011-06-06G3/8"X1910062216.72920
72011-06-08G3/8"X1912082316.72920
72011-08-05G1/2"X1480527.5213825
72011-08-06G1/2"X14100627.5213825
72011-08-08G1/2"X14120828213825
72011-08-10G1/2"X14161029213825
72011-10-10G5/8"X14161028234027
72011-12-10G3/4"X1416103226.54831
72011-12-12G3/4"X1420123226.54831
72011-16-08G1"X1112084033.36042
72011-16-12G1"X1120124033.36042
72011-16-16G1"X1125164133.36042

720B Bolt

Banjo fitting Bolt;

Zinc-plated carbon steel; stainless steel available;

show more...
PART NO.THREAD EDIMENSIONS
ABCS1
720B-02G1/8"X2829.54.84.814
720B-04G1/4"X1928.56619
720B-06G3/8"X1938.59722
720B-08G1/2"X1444138.527
720B-10G5/8"X1448.5151030
720B-12G3/4"X1456181032
720B-16G1"X1168.5221341
