SWAGED SAE 90° CONE SEAL FITTINGS

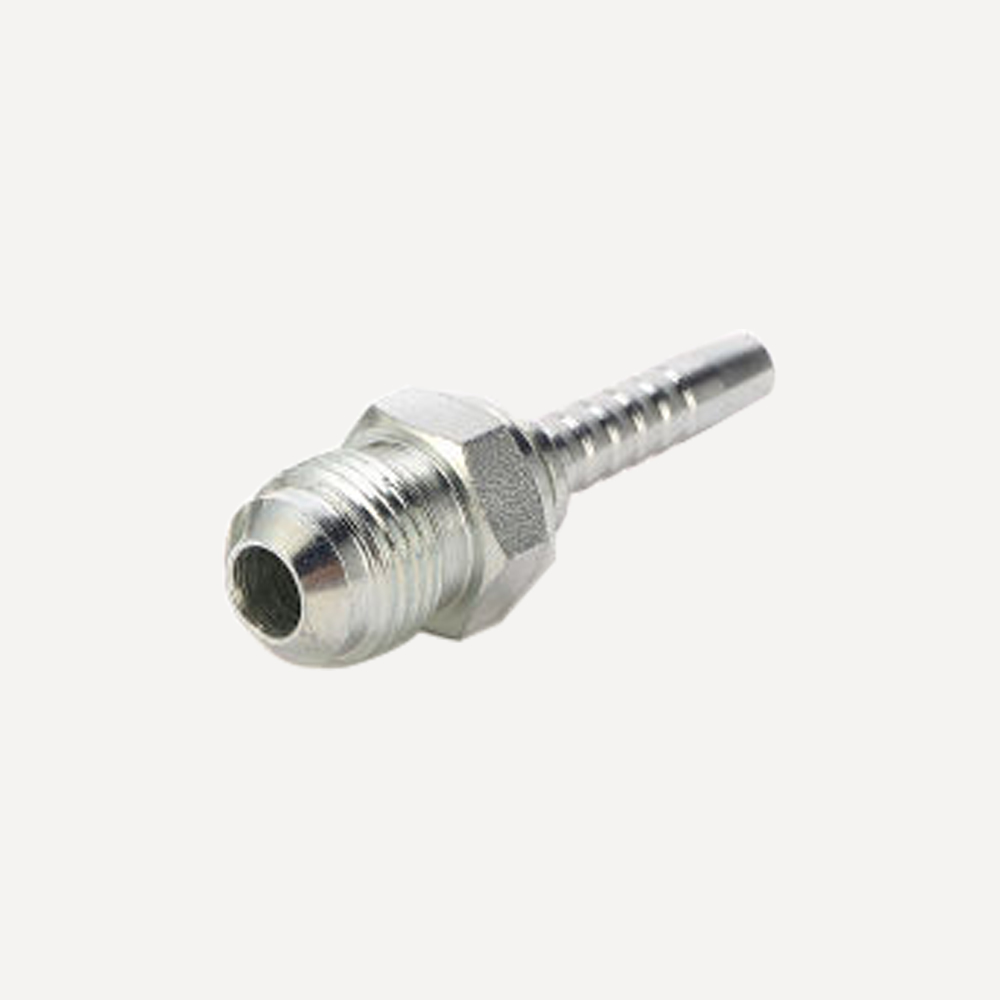

17811 SAE MALE 90° CONE

SAE J513 standard thread;

Male connection port;

90° Flare Seat Seal;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 17811 for braid; 17812 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACS1
17811-04-047/16"x2060425.512.712
17811-05-051/2"x208052714.214
17811-06-065/8"x18100628.515.717
17811-08-083/4"x161208341922
17811-10-107/8"x14161038.522.424
17811-12-121.1/16"x1420124425.430

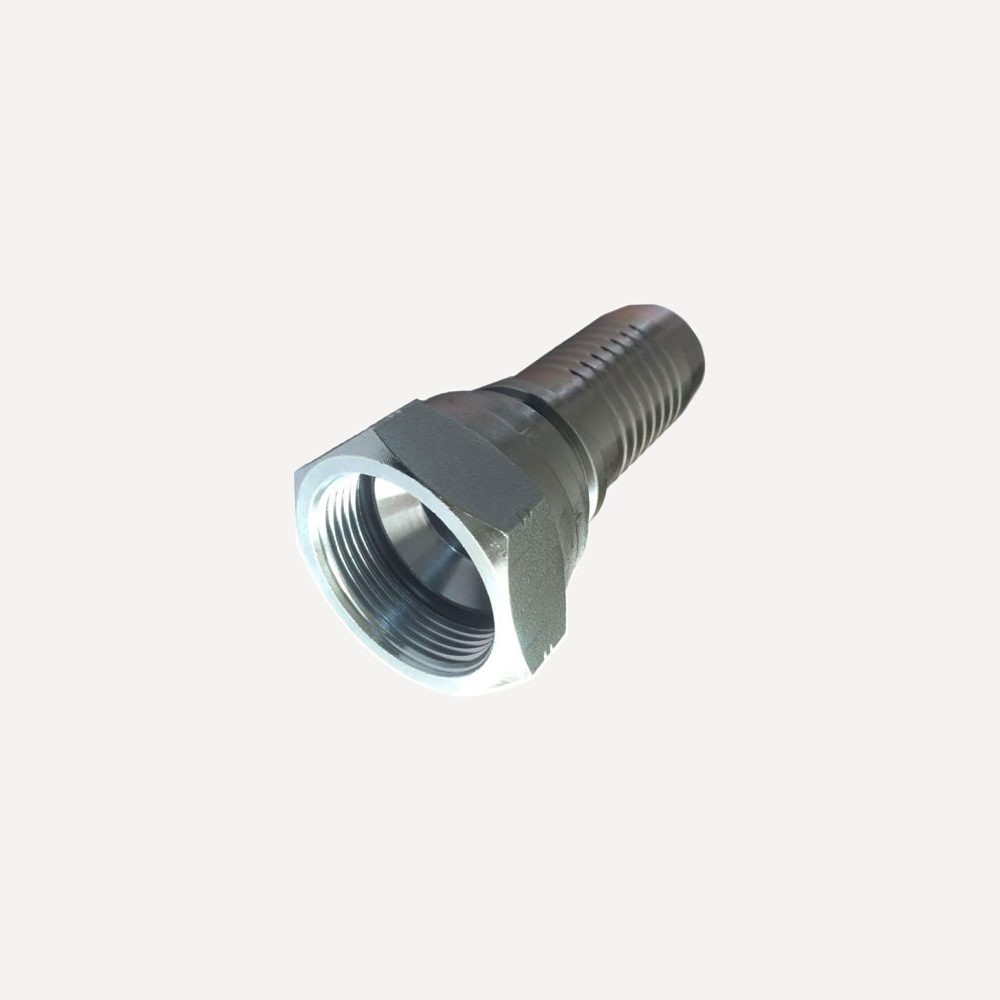

27811 SAE FEMALE 90° CONE SEAT

SAE J513 standard thread;

Female connection port;

90° Inverted Flare Seat Seal;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 27811 for braid; 27812 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACS1
27811-04-037/16"x2050314915
27811-04-047/16"x2060415915
27811-05-051/2"x2080515.59.517
27811-06-045/8"x186041711.322
27811-06-055/8"x188051711.322
27811-06-065/8"x1810061711.322
27811-08-083/4"x161208181124
27811-10-087/8"x14120818.51327
27811-10-107/8"x141610201327
27811-12-121.1/16"14201221.514.332

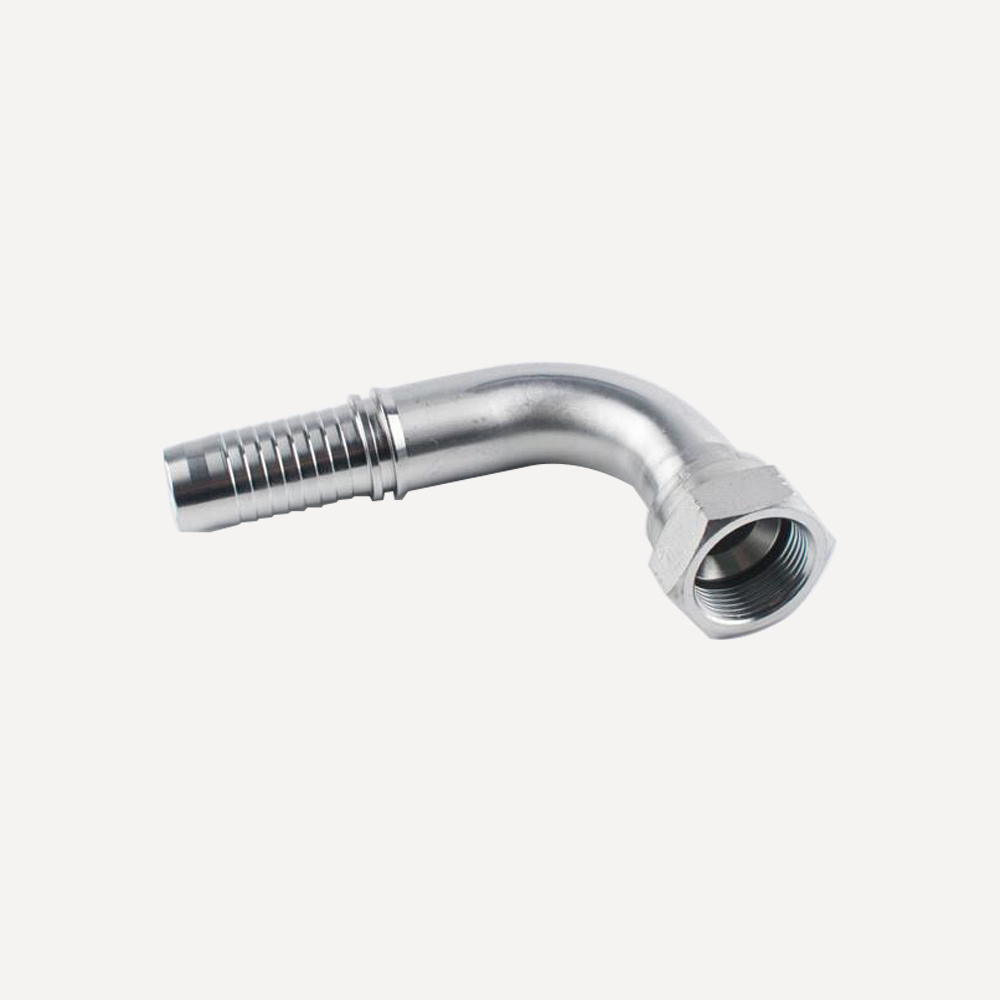

27841 45° SAE FEMALE 90° CONE SEAT

SAE J513 standard thread;

Female connection port;

90° Inverted Flare Seat Seal;

45° body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 27841 for braid; 27842 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACHS2
27841-04-037/16"x2050337.6917.215
27841-06-045/8"x186044211.32022
27841-06-055/8"x1880543.711.320.422
27841-06-065/8"x18100645.311.32122
27841-08-083/4"x16120858.21123.324
27841-10-087/8"x14120858.21323.327
27841-10-107/8"x14161069.61325.327
27841-12-121.1/16"x14201276.814.33032

27891 90° SAE FEMALE 90° CONE SEAT

SAE J513 standard thread;

Female connection port;

90° Inverted Flare Seat Seal;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Swaged fitting nipple combined with the corresponding ferrule which is crimped on the end of the hydraulic hose.

Note:

The last number in the five item code: “1” stands for use with braided hoses; “2” stands for use with spiral hoses; e.g 27891 for braid; 27892 for spiral;

Item code with “T” means T-type thread nut, comparing to locked thread nut, T-type can be extracted out from the mandrel;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACHS2
27891-04-047/16"x2060430933.515
27891-06-045/8"x186043011.335.522
27891-06-055/8"x188053311.338.522
27891-06-065/8"x18100635.311.340.822
27891-10-087/8"x14120842134727
27891-10-107/8"x14161056.51352.527
27891-12-121.1/16"x1420126514.363.532
