Reusable SAE fitting

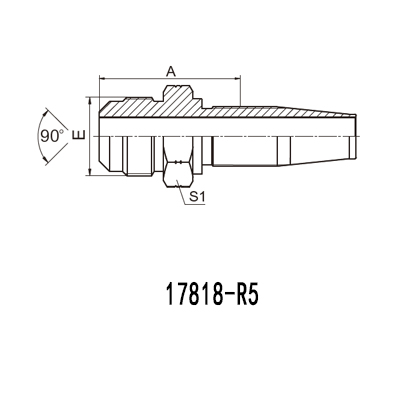

17818-R5 SAE MALE 90° CONE

SAE J513 thread;

90° flare seat on male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHAS1
17818-06-06(R5)5/8"X180633.717
17818-08-08(R5)3/4"X16084222
17818-12-12(R5)1.1/16"X14125130

27818-R5T SAE FEMALE 90° CONE SEAT

SAE J513 thread;

90° flare seat on male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACS1
27818-04-04(R5T)7/16"X20504915
27818-05-05(R5T)1/2"X20605917
27818-06-06(R5T)5/8"X1880611.322
27818-08-08(R5T)3/4"X16110810.524
27818-10-10(R5T)7/8"X1413101227
27818-12-12(R5T)1.1/16"X14161214.332

27818D-R5 SAE FEMALE 90° CONE SEAT

SAE J513 thread;

90° flare seat on male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHACS1S2
27818D-04-04(R5)7/16"X20042291415
27818D-05-05(R5)1/2"X200525.491417
27818D-06-06(R5)5/8"X18062611.31722
27818D-08-08(R5)3/4"X160831.5112224
27818D-10-10(R5)7/8"X141034132727
27818D-12-12(R5)1.1/16"X14123714.33232

27898D(R5) 90° SAE FEMALE 90° CONE SEAT

SAE J513 thread;

90° flare seat on male fittings;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACHS1S2
27898D-06-06(R5)5/8"X18100644.811.340.81722
27898D-08-08(R5)3/4"X1612085310.547.51924
