Reusable ORFS fittings

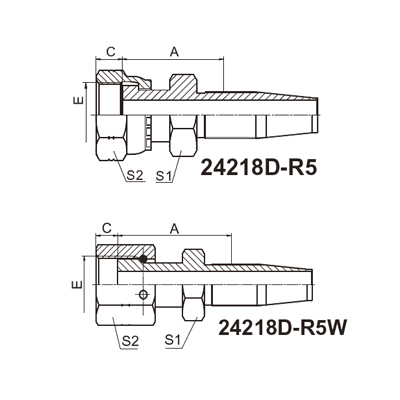

24218D-R5 ORFS FEMALE FLAT SEAT DOUBLE HEXAGON

 SAE J516 thread standard;

 Flat seal face on the female fittings;  mated   O-Ring  seat on the  male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Reusable type, screwable ferrule;

 Note:

Item code with “D” stands for double nuts;

Item code with “W” stands for a little hole to penetrate a wire against loosening;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHCS1S2
24218D-04-04(R5)9/16"X18048.51419
24218D-04-05(R5)9/16"X18058.51419
24218D-06-06(R5)11/16"X1606101722
24218D-08-08(R5)13/16"X1608111927
24218D-10-10(R5)1"X141013.52430
24218D-12-12(R5)1.3/16"X1212153036
24218D-16-16(R5)1.7/16"X1216153641
24218D-20-20(R5)W1.11/16"X1220154150
24218D-24-24(R5)W2"X1224165060
