Reusable JIC fittings

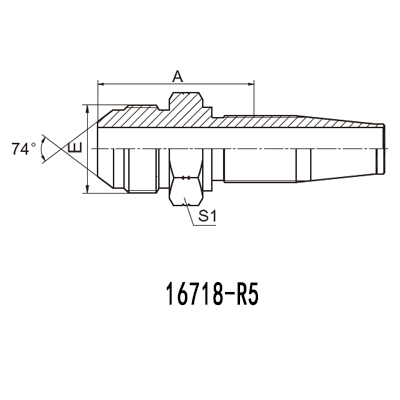

16718-R5 JIC MALE 74° CONE

SAE J514 thread standard;

74° inverted flare on the female fittings;    74° flare seat on the  male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Reusable type, screwable ferrule;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHAS1
16718-04-04(R5)7/16"X20042912
16718-06-05(R5)9/16"X18053117
16718-06-06(R5)9/16"X18063217
16718-08-06(R5)3/4"X160634.722
16718-08-08(R5)3/4"X16083822
16718-10-10(R5)7/8"X141040.524
16718-12-12(R5)1.1/16"X121245.530
16718-16-16(R5)1.5/16"X12164436
16718-20-20(R5)1.5/8"X122049.546
16718-24-24(R5)1.7/8"X122452.550

26718-R5T JIC FEMALE 74° CONE SEAT

SAE J514 thread standard;

74° inverted flare on the female fittings;    74° flare seat on the  male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

Reusable type, screwable ferrule;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHACS2
26718-04-04(R5T)7/16"X200420.5915
26718-05-05(R5T)1/2"X200523.49.517
26718-06-06(R5T)9/16"X180622.510.519
26718-08-08(R5T)3/4"X160823.51124
26718-10-10(R5T)7/8"X1410241327
26718-12-12(R5T)1.1/16X1212261532
26718-16-16(R5T)1.5/16"X121622.51641
26718-20-20(R5T)1.5/8"X1220241750
26718-24-24(R5T)1.7/8"X1224242055
26718-32-32(R5T)2.1/2"X12322623.575

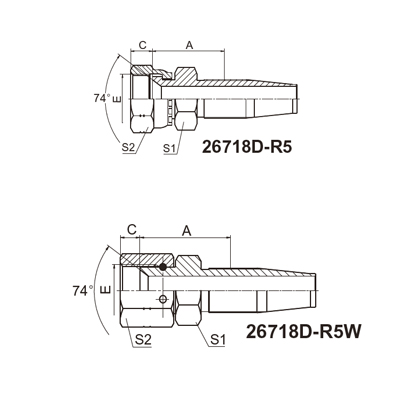

26718D-R5 JIC FEMALE 74° CONE SEAT

SAE J514 thread standard;

74° inverted flare on the female fittings;    74° flare seat on the  male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Reusable type, screwable ferrule;

PART NO.THREAD EHOSE BOREDIMENSIONS
DASHACS1S2
26718D-04-04(R5)7/16"X20042291415
26718D-05-05(R5)1/2"X200525.49.51417
26718D-06-06(R5)9/16"X180624.510.51719
26718D-08-06(R5)3/4"X160831.5112224
26718D-10-10(R5)7/8"X141034132727
26718D-12-12(R5)1.1/16X121237153232
26718D-16-16(R5)1.5/16"X121633.5163841
26718D-20-20(R5)W1.5/8"X122041.5174150
26718D-24-24(R5)W1.7/8"X122443204655
26718D-32-32(R5)W2.1/2"X123245.523.56575

26798D-R5 90° JIC FEAMLE 74° CONE SEAT

SAE J514 thread standard;

74° inverted flare on the female fittings;    74° flare seat on the  male fittings;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Reusable type, screwable ferrule;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNACHS1S2
26798D-04-04(R5)7/16"X200438.5933.51415
26798D-05-05(R5)1/2"X200543.49.5371417
26798D-06-06(R5)9/16"X180644.810.539.31719
26798D-08-08(R5)3/4"X1608531147.51924
26798D-10-10(R5)7/8"X141066.51352.52427
26798D-12-12(R5)1.1/16"X121279.51563.52732
26798D-16-16(R5)1.5/16"X121686.516703241
26798D-20-20(R5)W1.5/8"X1220100.517854150
26798D-24-24(R5)W1.7/8"X12241212097.54655
26798D-32-32(R5)W2.1/2"X1232143.313.5118.86575
