Interlock SAE Flange 6000 fittings

87613 SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDL
87613-12-123/4"20125341.3328.76
87613-16-121"20125847.6389.53
87613-16-161"251659.447.6389.53
87613-20-161.1/4"251667.4544410.29
87613-20-201.1/4"322069.8544410.29
87613-20-241.1/4"402474.7544410.29
87613-24-201.1/2"322078.863.55112.57
87613-24-241.1/2"402478.763.55112.57
87613-32-242"402491.279.46712.57
87613-32-322"50329179.46712.57

87623 22.5° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

22.5° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87623-08-081/2"120866.831.724117.75
87623-12-123/4"201290.141.33214.28.76
87623-16-161"2516100.947.63815.29.53
87623-20-201.1/4"3220115.9544418.210.29
87623-24-241.1/2"4024133.463.55121.112.57
87623-32-322"503216379.46726.612.57

87633 30° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

30° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87633-08-081/2"12086531.72415.27.75
87633-12-123/4"201287.841.33219.88.76
87633-16-161‘’251698.447.63821.39.53
87633-20-201.1/4"3220113544425.510.29
87633-24-241.1/2”402413063.55129.812.57
87633-32-322"5032158.879.46737.712.57

87643 45° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

45° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87643-12-123/4"201288.741.33231.88.76
87643-16-121"201290.847.63833.29.53
87643-16-161"2516101.147.63834.79.53
87643-20-161.1/4"2516103.9544437.510.29
87643-20-201.1/4"3220116.6544441.510.29
87643-24-201.1/2"3220120.163.55145.112.57
87643-24-241.1/2"4024134..663.5514912.57
87643-32-242"4024140.279.46754.712.57
87643-32-322"5032163.379.46761.912.57

87643-H 45° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

45° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87643-16-16(H90)1"2516156.447.638349.6
87643-20-20(H90)1.1/4"3220165.15443.639.410.4
87643-24-24(H120)1.1/2"4024205.563.550.845.512.7
87643-24-24(H150)1.1/2"4024135.563.550.845.512.7

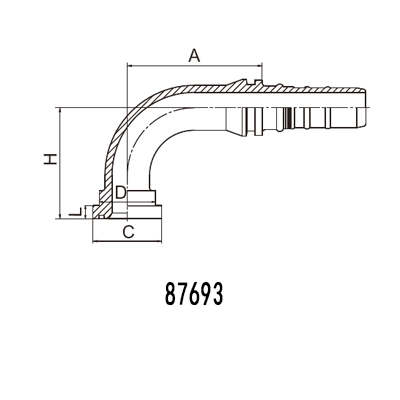

87693 90° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87693-12-123/4"20127541.332668.76
87693-16-121"20127547.638689.53
87693-16-161"251688.947.63873.59.53
87693-20-161.1/4"251688.9544478.510.29
87693-20-201.1/4"3220105.8544486.510.29
87693-24-201.1/2"3220105.863.55189.512.57
87693-24-241.1/2"4024124.263.55110312.57
87693-32-342"4024124.279.46710312.57
87693-32-322:5032150.379.467123.312.57

87693-H 90° SAE FLANGE 6000PSI

6000 PSI working pressure flange;

Two halves flange with an O Ring Seal ; one has flat face and the other has a o ring groove;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACDHL
87693-16-16(H90)1"251688.947.638909.6
87693-20-20(H120)1.1/4"3220105.85443.612010.4
87693-20-20(H130)1.1/4"3220105.85443.613010.4
87693-20-20(H150)1.1/4"3220105.85443.615010.4
87693-24-24(H120)1.1/2"4024124.263.550.812012.7
87693-24-24(H130)1.1/2"4024124.263.550.813012.7
87693-24-24(H150)1.1/2"4024124.263.550.815012.7
