Interlock ORFS Flat Seal fittings

24213-W ORFS FEMALE FLAT SEAT

SAE J516 thread standard;

Falt seal face on the female fittings;  mated   O-Ring  seat on the  male fittings;

Straight body elbow;

Zinc-plated carbon steel; stainless steel available;

 Interlock tail; swaged; mated with corresponding ferrule to be crimped;

Note:

  Item code with “W” stands for a hole on the female nut, which can be penetrated with wire against    loosening;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACS2
24213-12-12W1.3/16"X122012411536
24213-16-16W1.7/16"X12251644.41541
24213-20-20W1.11/16"X12322047.81550
24213-24-24W2"X12402448.21560

24243-W 45° ORFS FEMALE FLAT SEAT

SAE J516 thread standard;

Falt seal face on the female fittings;  mated   O-Ring  seat on the  male fittings;

45° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

Note:

  Item code with “W” stands for a hole on the female nut, which can be penetrated with wire against    loosening;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACHS2
24243-12-12W1.3/16"X12201297.7154236
24243-16-16W1.7/16"X1225161111544.641
24243-20-20W1.11/16“X123220124154950
24243-24-24W2"X124024138.21553.660

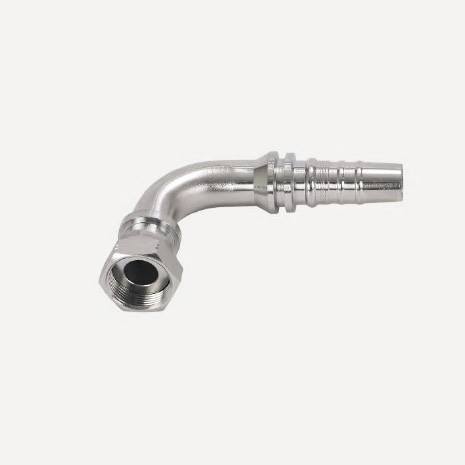

24293-w 90° ORFS FEMALE FLAT SEAT

SAE J516 thread standard;

Falt seal face on the female fittings;  mated   O-Ring  seat on the  male fittings;

90° body elbow;

Zinc-plated carbon steel; stainless steel available;

Interlock tail; swaged; mated with corresponding ferrule to be crimped;

Note:

  Item code with “W” stands for a hole on the female nut, which can be penetrated with wire against    loosening;

PART NO.THREAD EHOSE BOREDIMENSIONS
DNDASHACHS2
24293-12-12W1.3/16"X12201273.81580.536
24293-16-16W1.7/16"X12251688.91588.541
24293-20-20W1.11/16"X123220105.81510050
24293-24-24W2"X124024123.215114.560
